50L Red Open-Top Corrugated Iron Drum - China Suppliers Factory, Dual Handles, Customizable for Liquid and Solid Storage
📦 Product Description
This 50-litre red open-top drum is widely applicable for the storage and transportation of liquid materials such as chemical raw materials, lubricants, and coatings. Its corrugated structure enhances resistance to deformation, while the cold-rolled steel construction enables it to withstand temperatures ranging from -20°C to 60°C, effectively safeguarding material stability. The dual-handle design is ergonomically engineered, with each drum bearing up to 80kg, facilitating manual handling or mechanical lifting. It is particularly suited to the handling requirements of small to medium-sized factories and warehouses.
⭐ Features
-
🔩
1. High-strength material: Constructed from 0.5–0.8mm cold-rolled steel plate, acid-washed and phosphated for a smooth, burr-free surface. Offers superior rust resistance compared to standard iron drums, extending service life by over 30%.
-
🏗️
2. Structural Optimisation: The barrel body features an integrated corrugated design enhancing overall rigidity and preventing deformation during tipping. Large/small flange interfaces are available to accommodate different sealing lid types, ensuring leak-proof material containment.
-
🎨
3. Customisation Services: Supports spray painting in multiple colours including red, blue, and yellow (RAL codes available). Can screen-print corporate logos, warning labels, or product information onto the barrel body per client requirements, enhancing brand recognition.
-
🔒
4. Safety and Convenience: Dual handles feature reinforced steel welded construction with secure, seamless joints. Handle height aligns with forklift fork spacing, optimising efficiency for both manual and mechanical handling.
📐 Specifications
| Capacity | 50 litres (±1L tolerance) |
| Dimensions | Diameter 350mm × Height 580mm (including flange height) |
| Material Thickness | 0.5mm (Basic model) / 0.6mm (Reinforced model) / 0.8mm (Heavy-duty model) |
| Handle Load Capacity | Single handle static load capacity ≥50kg, dual handles combined load capacity ≥100kg |
| Surface Finish | Electrostatic powder coating (adhesion grade ≥Class 2) |
| Colour Standard | Default colour: red (RAL 3020). Other colours available upon request (minimum order quantity: 50 units). |
| Packaging Method | Loose or palletised (10 units per pallet). |
| Certification | Complies with GB/T 325.1-2018 closed-head steel drum standard. Passes drop test (no leakage after 1.2m drop). |
🏆 Why Choose Us
| Capacity | 10 litres (±0.5L tolerance) |
| Dimensions | Diameter 300mm × Height 400mm (including flange height) |
| Weight | 2.5–3.2kg (varies with steel plate thickness) |
| Coating Properties | Adhesion grade 1 (cross-hatch adhesion test), salt spray resistance ≥500 hours |
| Certification Standards | Complies with GB/T 325.1-2018 steel drum standard and FDA food contact material safety certification |
| Operating Temperature | -20°C to 80°C (short-term heat resistance up to 120°C) |
Compared to conventional plastic drums, this product offers advantages including high-temperature resistance, puncture resistance, and recyclability, making it particularly suitable for storing organic solvents and low-corrosivity chemicals. Compared to welded closed-top drums, the open design facilitates rapid filling and emptying. When paired with a flanged sealing lid, it enables reuse, reducing packaging costs. The dual-handle and corrugated structure design ensures industrial-grade load-bearing capacity while maintaining lightweight characteristics (net weight 4.5–6.2kg), effectively reducing transport energy consumption.
⚠️ Notice
- ❶ Prior to use, inspect the drum body for defects such as dents or cracked welds, and confirm that the handle welds are secure.
- ❷ When storing liquids, fill no more than 90% capacity to prevent expansion and leakage in high-temperature environments.
- ❸ For screen-printed logos, provide vector files (AI/CDR format) and confirm colour codes in advance.
- ❹ Clean using high-pressure water jets only; avoid strong acids or alkalis to prevent coating damage.
💬 FAQ
Q How should I choose between 0.5mm and 0.8mm thickness?
A For storing solid materials or indoor static use, the 0.5mm variant offers better value for money. For frequent handling, outdoor storage, or materials with a loading density exceeding 1.2g/cm³, the 0.8mm heavy-duty variant is recommended.
Q Do you offer export packaging?
A We provide fumigated pallets and export wooden crates compliant with ISTA 3A transport standards. Specific costs are calculated based on the destination port.
Q Can the drum be used for food-grade storage?
A Yes. Our product complies with FDA food contact material safety certification, making it suitable for storing food-grade liquids when used with an appropriate sealing lid.
Q What is the minimum order quantity for custom colours or logo printing?
A Custom colour orders require a minimum of 50 units. For logo screen printing, please provide vector files in AI or CDR format and confirm RAL colour codes prior to production.
Q Is the drum compatible with standard forklift equipment?
A Yes. The dual-handle height is specifically designed to align with standard forklift fork spacing, ensuring safe and efficient mechanical lifting in warehouse and industrial environments.
Q How do I verify the drum is safe before use?
A Before each use, visually inspect the drum body for dents, cracked welds, or coating damage. Confirm that both handle welds are fully intact and that the sealing lid fits securely without gaps.

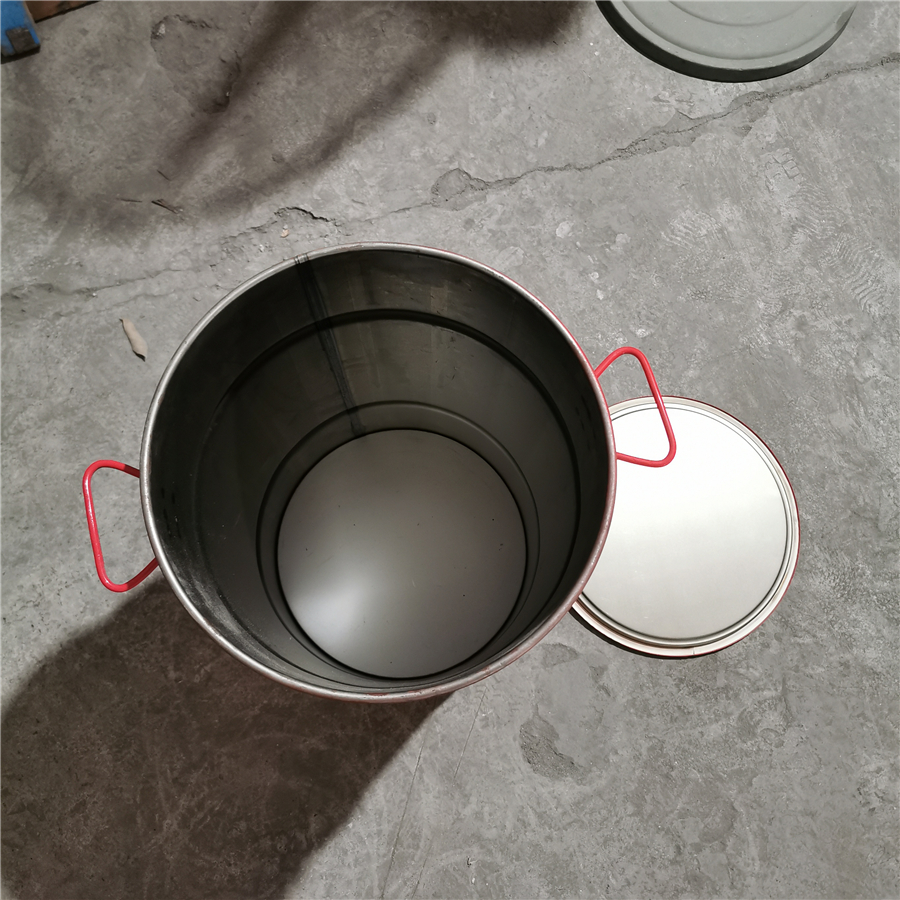

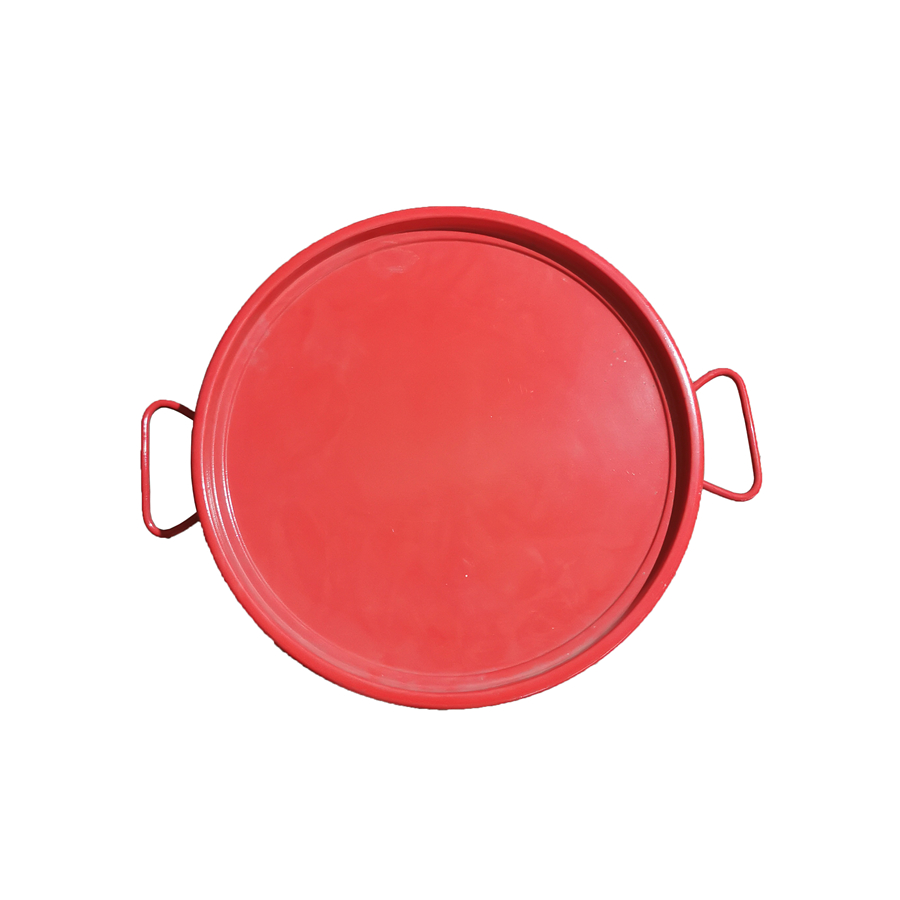

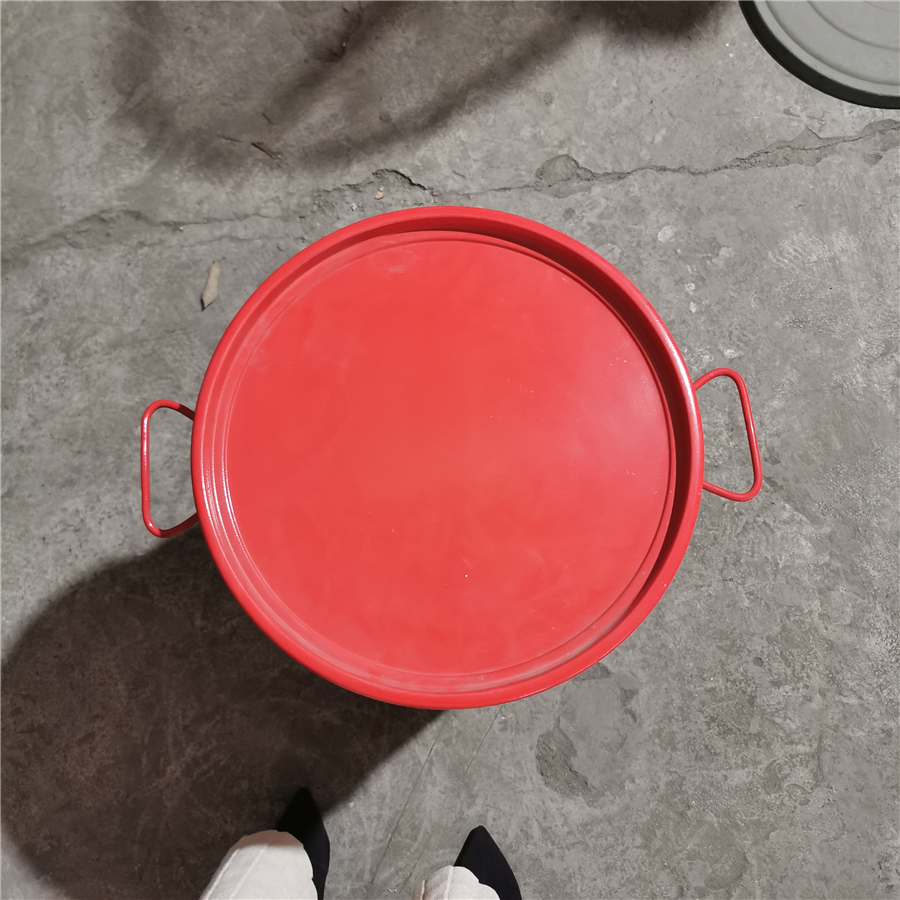

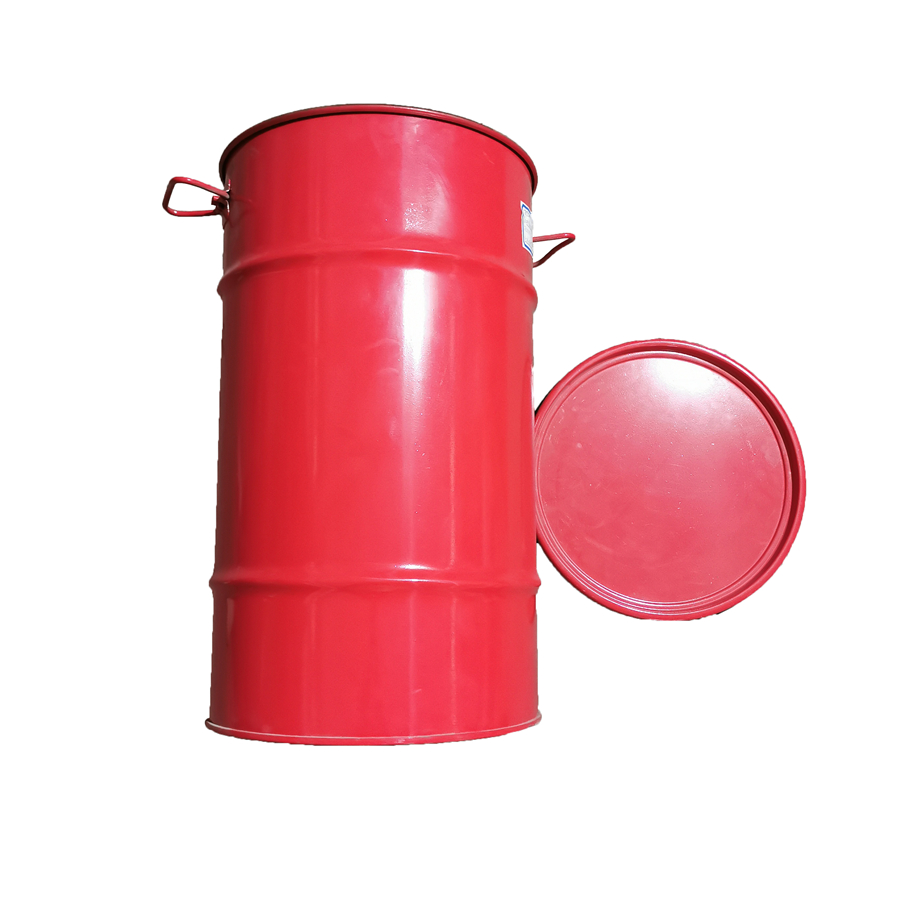

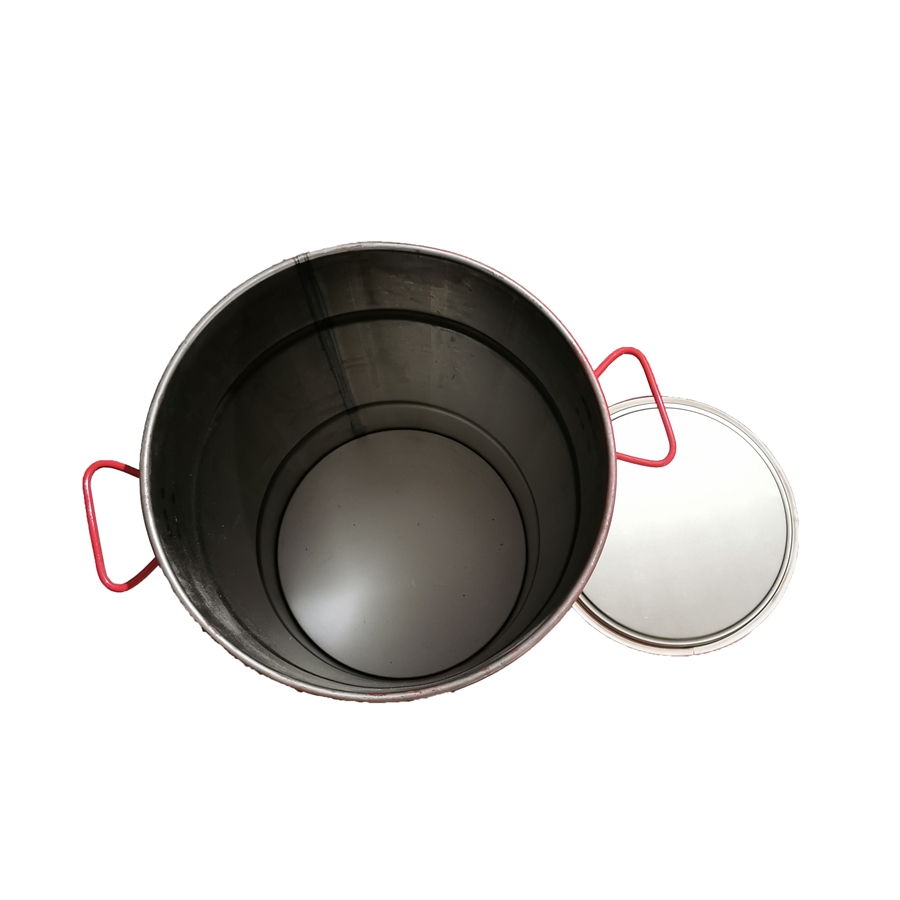

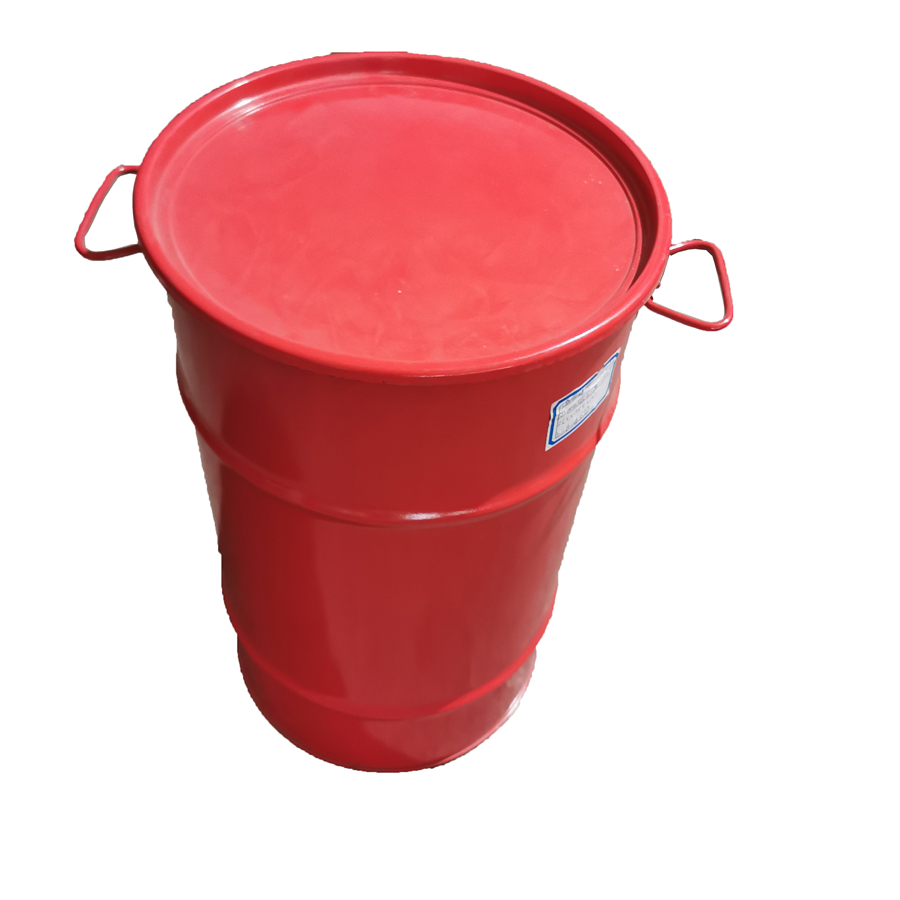

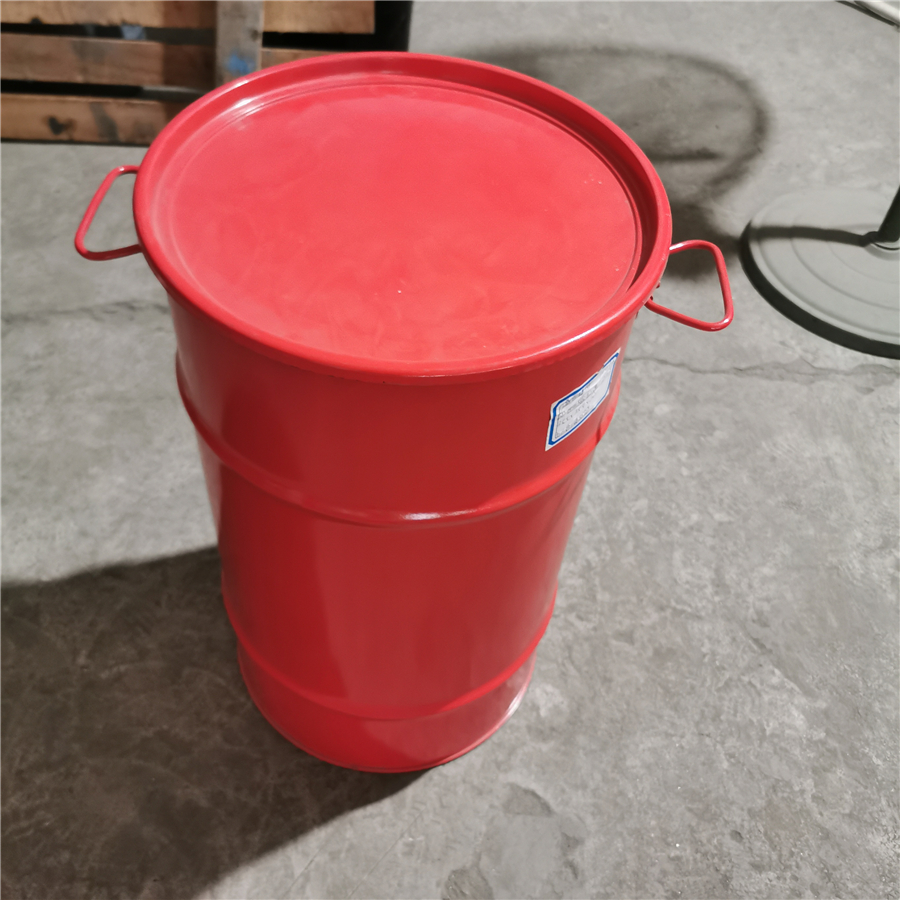

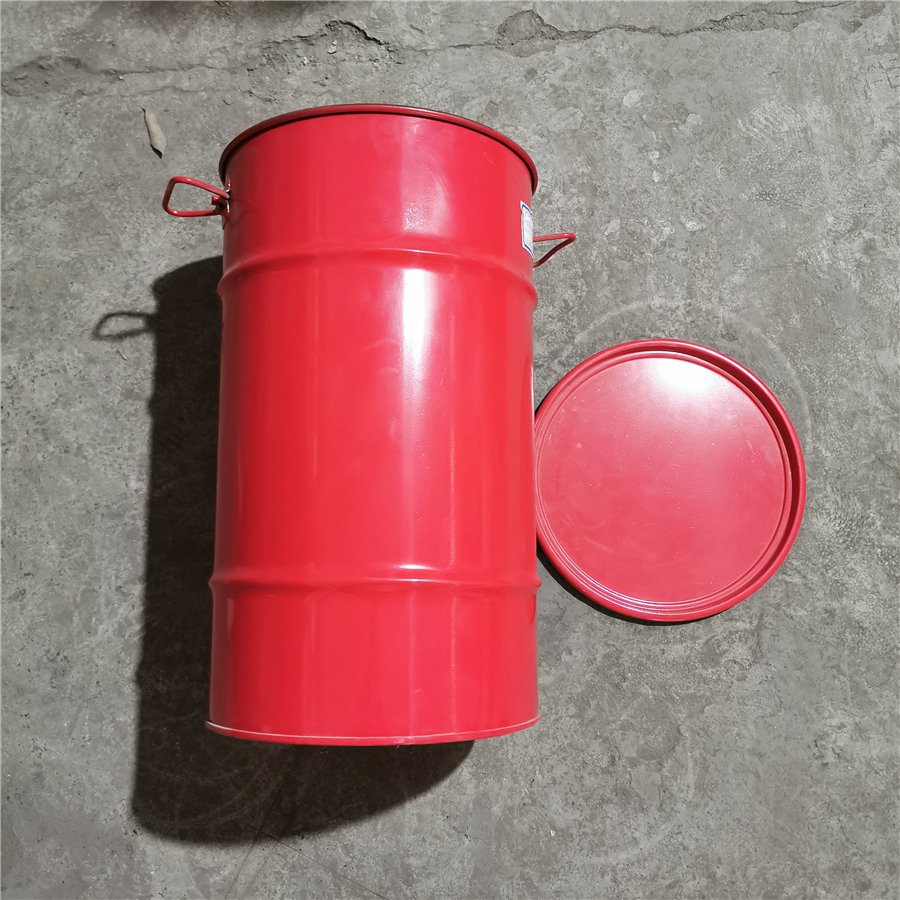

🖼️ Detail Pictures
