200-230L Galvanised Conical Steel Drum - Durable Container from China Suppliers and Factory
🛡
Core Material: High-zinc-coated galvanised steel plate, corrosion-resistant and durable
The drum body utilises 2.0mm thick premium cold-rolled steel plate, surface-treated with hot-dip galvanisation. The zinc coating exceeds 80g/m², forming a robust anti-corrosion barrier that effectively withstands moisture and mildly acidic/alkaline environments. This resolves the issues of rust susceptibility and short service life common to standard steel drums.
- High strength and toughness — resists deformation when fully loaded (200–230 litres)
- Operating temperature range: -10°C to 80°C
- Safely holds non-strongly corrosive liquids, solid particles and similar materials
- Cleanable for reuse — balances cost-effectiveness with environmental sustainability
📦
Capacity and Structure: Large Capacity, Tapered Design for Convenience
Precision 200–230 litre capacity perfectly matches industrial bulk storage requirements, reducing material repackaging and enhancing operational efficiency.
- 450mm wide opening for swift mechanical or manual filling
- Tapered base with optional sealed discharge valve — ensures complete material evacuation without residue
- Particularly suitable for viscous materials like paints and adhesives
- Mechanically optimised taper ensures stable stacking without tipping, saving storage space
- Empty drums nest for efficient transport, reducing return freight costs
⚙️
Crafted Details: Industrial-Grade Specifications for Safety and Convenience
- High-frequency resistance welding creates robust, seamless joints — passes hydrostatic pressure testing for leak-free, high-volume containment
- Smoothly rolled inner rims prevent operational cuts
- Reinforced galvanised lifting lugs support loads exceeding 200kg — compatible with forklifts and lifting equipment
- Standard spiral-seal lids with nitrile rubber gaskets for dustproof and leakproof protection during long-distance transport
- Select models offer customisable anti-theft locking mechanisms to enhance material security
🏭
Applications: Industrial Essentials, Multi-Sector Compatibility
Widely employed across multiple industries:
- Chemical industry — storing latex paints, thinners, etc.
- Coatings industry — holding colour pastes, resins, etc.
- Hardware industry — organising components, fasteners, etc.
- Warehousing and logistics — transit containers for centralised material management
- Suits production line batching and temporary site storage applications
- High load-bearing capacity and corrosion resistance make it a dependable carrier for industrial material handling
🖼

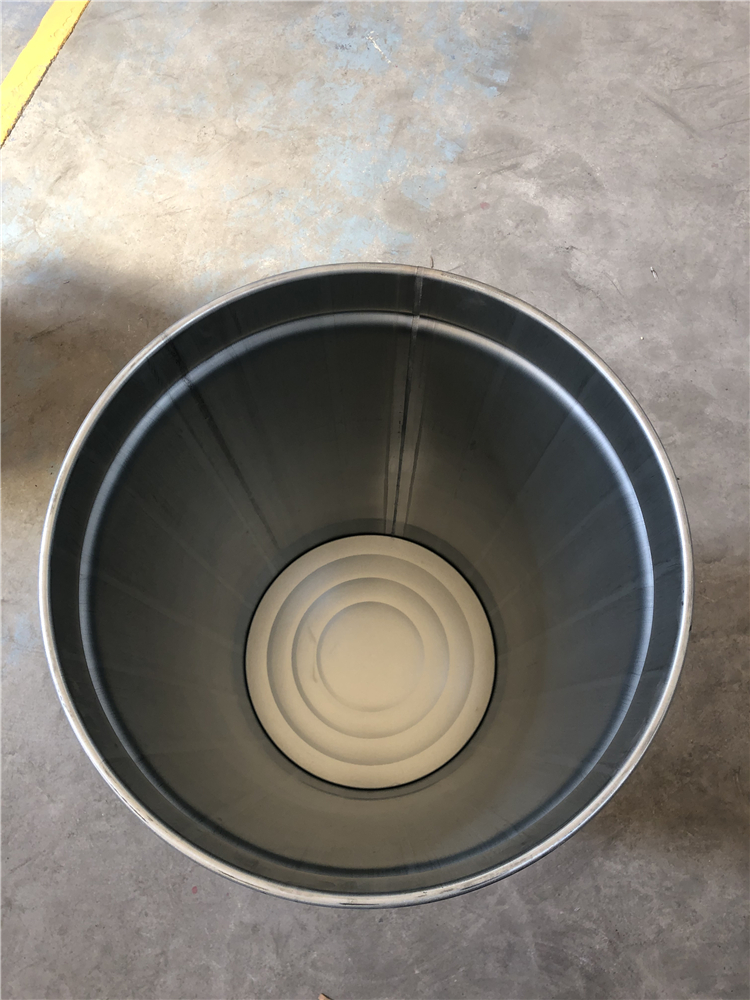

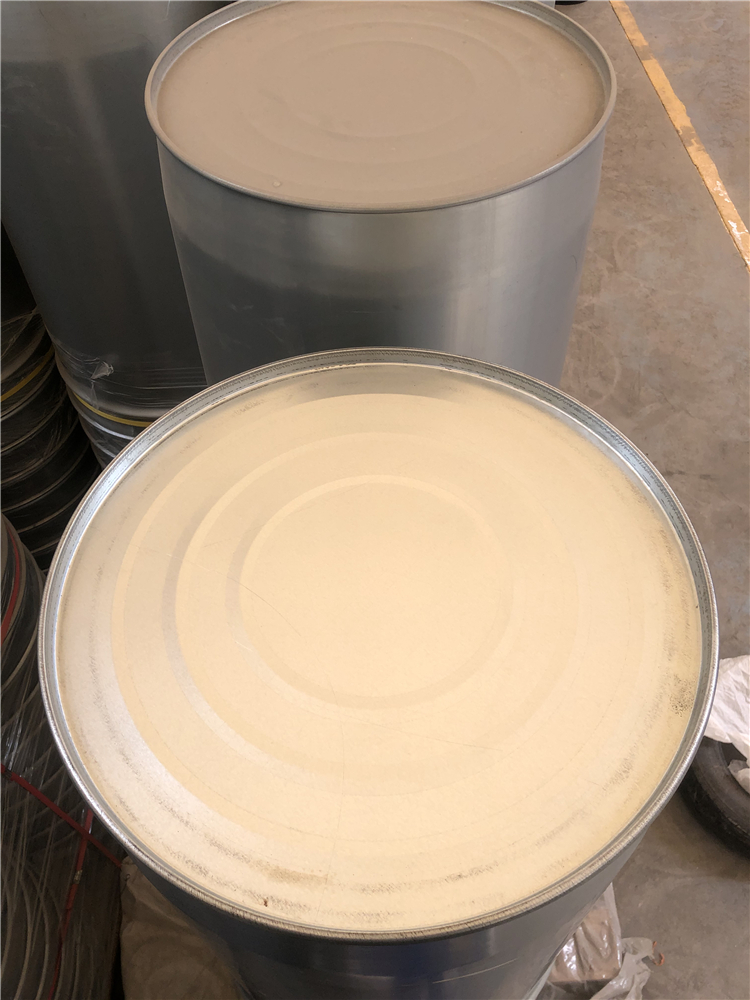

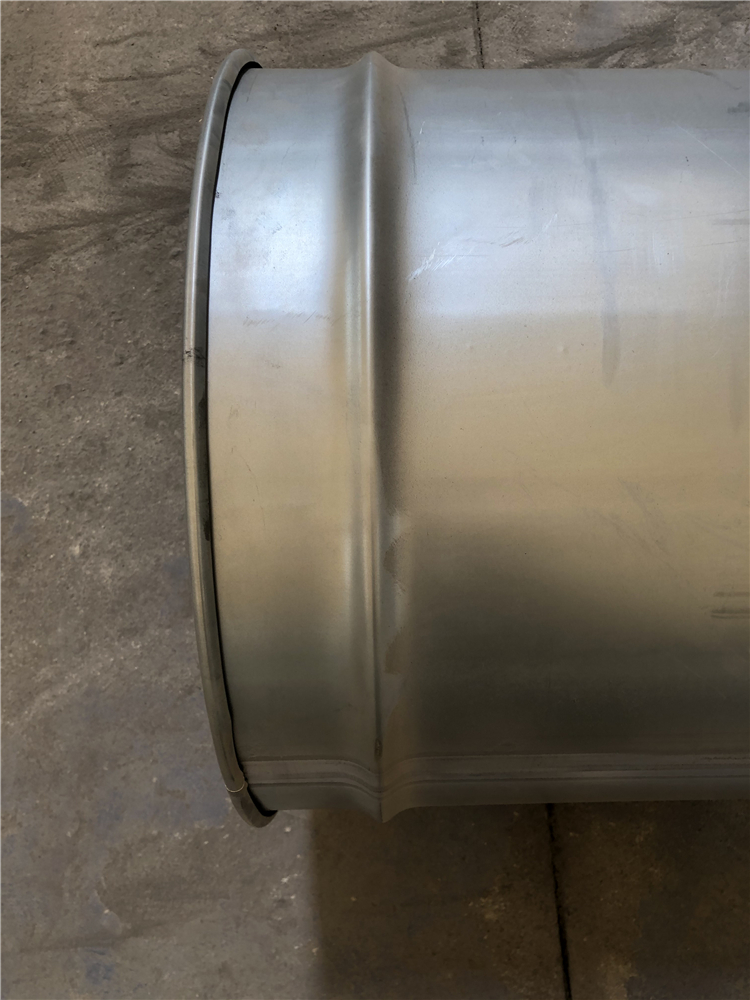

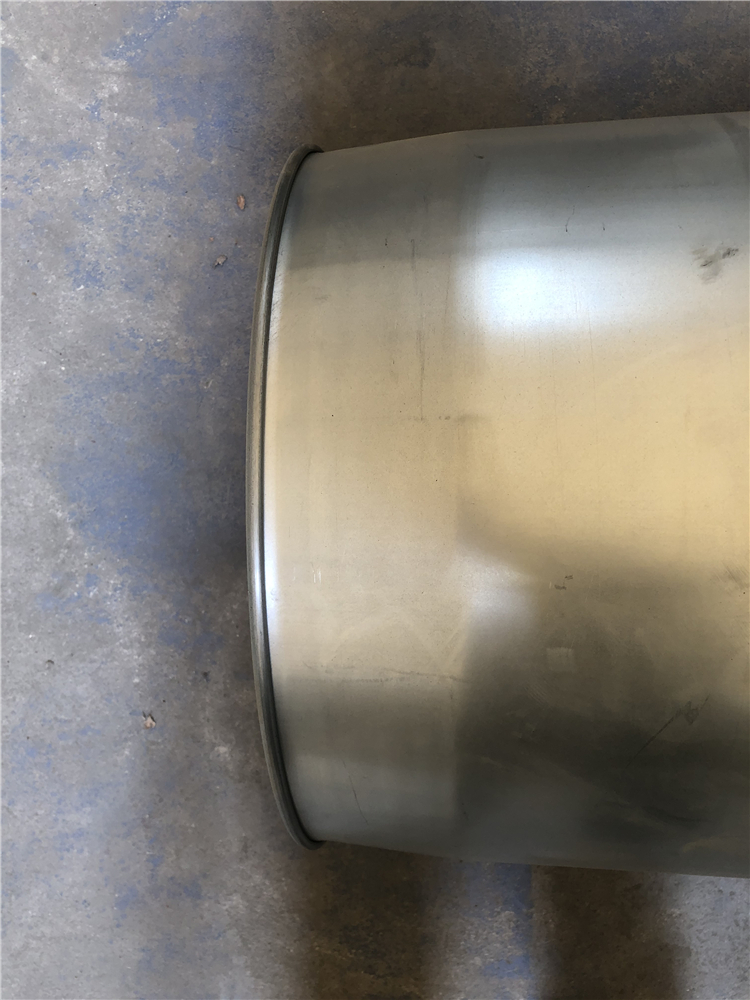

Detail Pictures
❓
Frequently Asked Questions
Q What is the zinc coating thickness on the galvanised steel drum, and how does it prevent corrosion?
The zinc coating exceeds 80g/m², applied via hot-dip galvanisation. This forms a dense, metallurgically bonded barrier that protects the 2.0mm cold-rolled steel plate from moisture, mild acids, and alkaline environments — significantly extending the drum's service life compared to standard steel drums.
Q What types of materials can be stored in the 200–230 litre galvanised steel drum?
The drum is suitable for non-strongly corrosive liquids (such as latex paints, thinners, resins, and adhesives), solid particles, and similar industrial materials. It is not recommended for strongly corrosive chemicals such as concentrated acids or strong alkalis.
Q What is the maximum load-bearing capacity, and is it compatible with forklifts?
Yes. The reinforced galvanised lifting lugs on both sides support loads exceeding 200kg, making the drum fully compatible with forklifts and standard lifting equipment for safe and efficient handling of fully loaded containers.
Q Can the drum be reused, and how should it be cleaned?
Yes, the drum is designed for reuse. After emptying, it can be cleaned with appropriate solvents or water (depending on the stored material). The smooth inner rims and optional sealed discharge valve help ensure complete evacuation of contents, making cleaning straightforward and reducing residue build-up.
Q Does the drum lid provide a proper seal for transport and storage?
Yes. The standard spiral-seal lid incorporates a nitrile rubber gasket, providing reliable dustproof and leakproof protection suitable for long-distance transport. Select models also offer customisable anti-theft locking mechanisms for added material security.
Q What are the operating temperature limits for this galvanised steel drum?
The drum is rated for standard operating temperatures from -10°C to 80°C, making it suitable for a wide range of industrial environments including cold storage areas and moderately heated production facilities.
